Aluminium pedestrian bridges

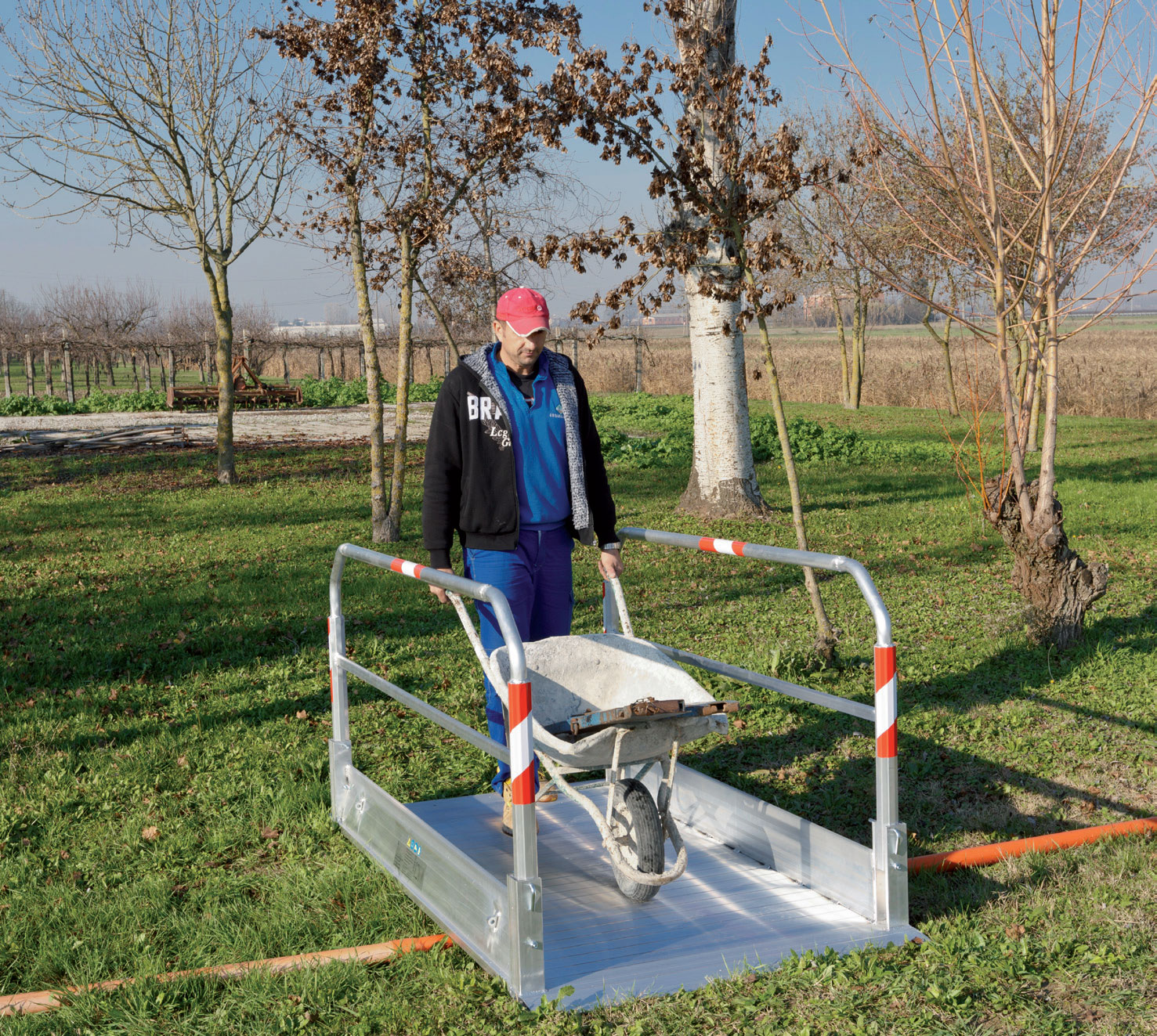

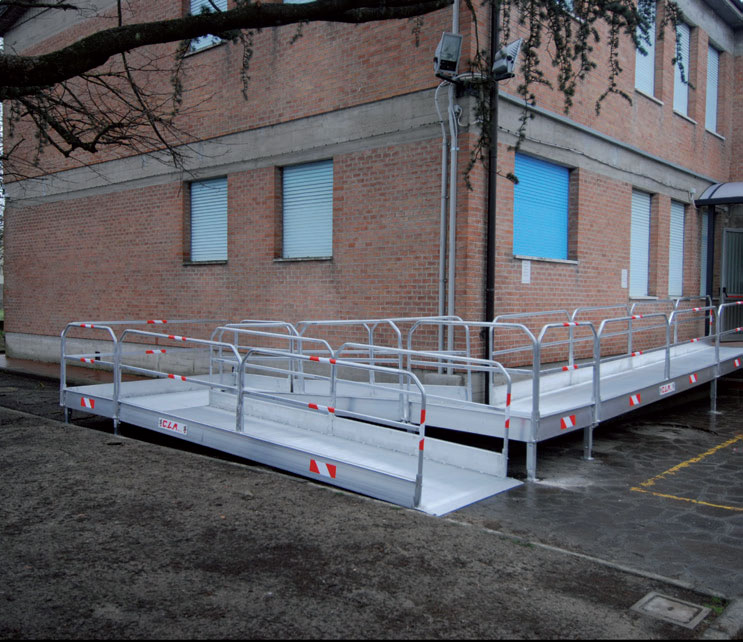

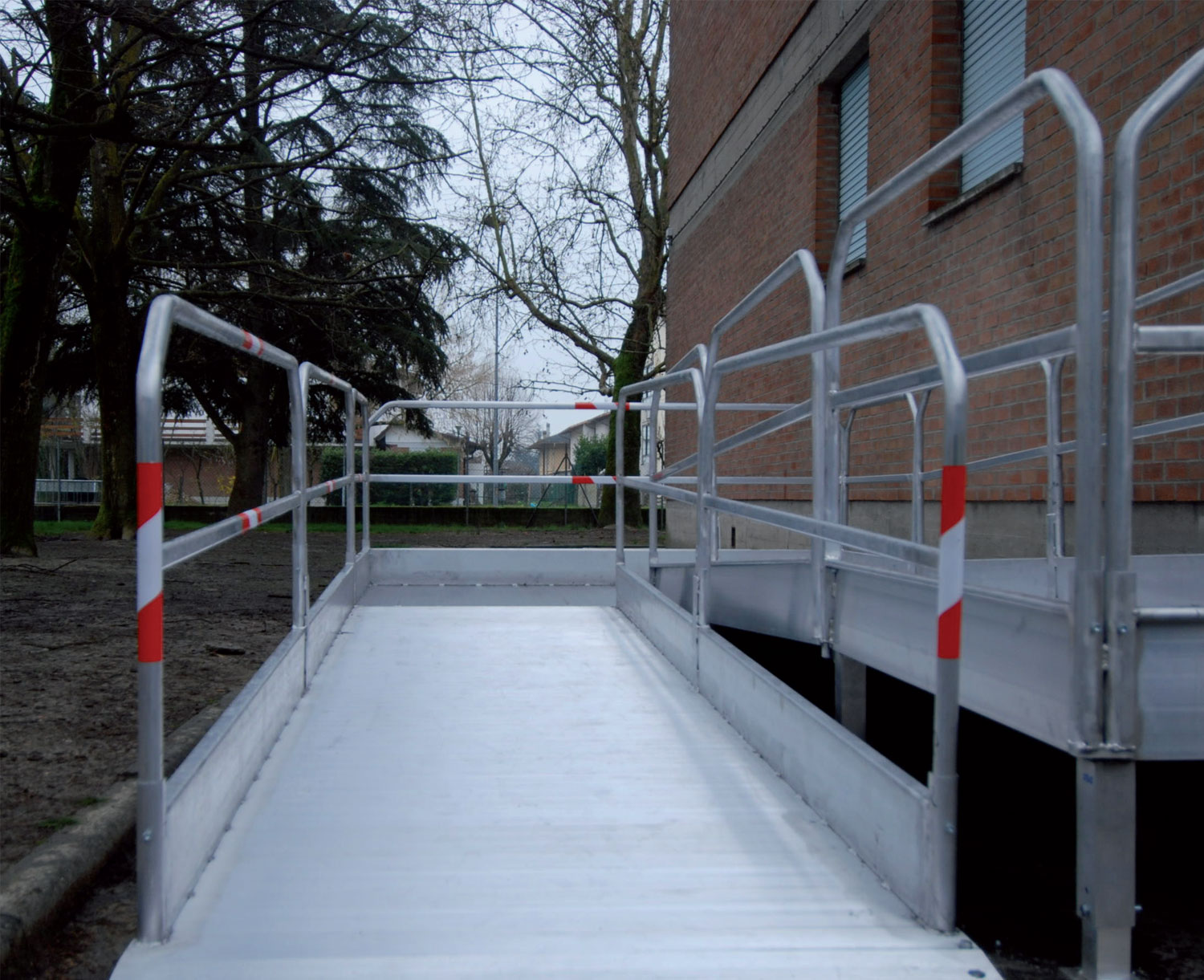

Definitive CLM produces pedestrian bridges in aluminium alloy for use mainly in construction sites as a safe solution for crossing trench sites and any voids (e.g. between scaffolds and prefabs). All the products in the range have tilting handrails. They are all in accordance with Presidential Decree 164: they have a 1-metre high parapet with a rail at half-height and a toe board 20 cm high.
Features:
Features:
- Anti-slip surface.
- Wire terminals without steps for wheelchairs.
- 200 mm high toe boards at the sides. Tilting handrails 1000 mm high.
- 4 holes for securing the platform to the ground.
- Any special sizes on request.

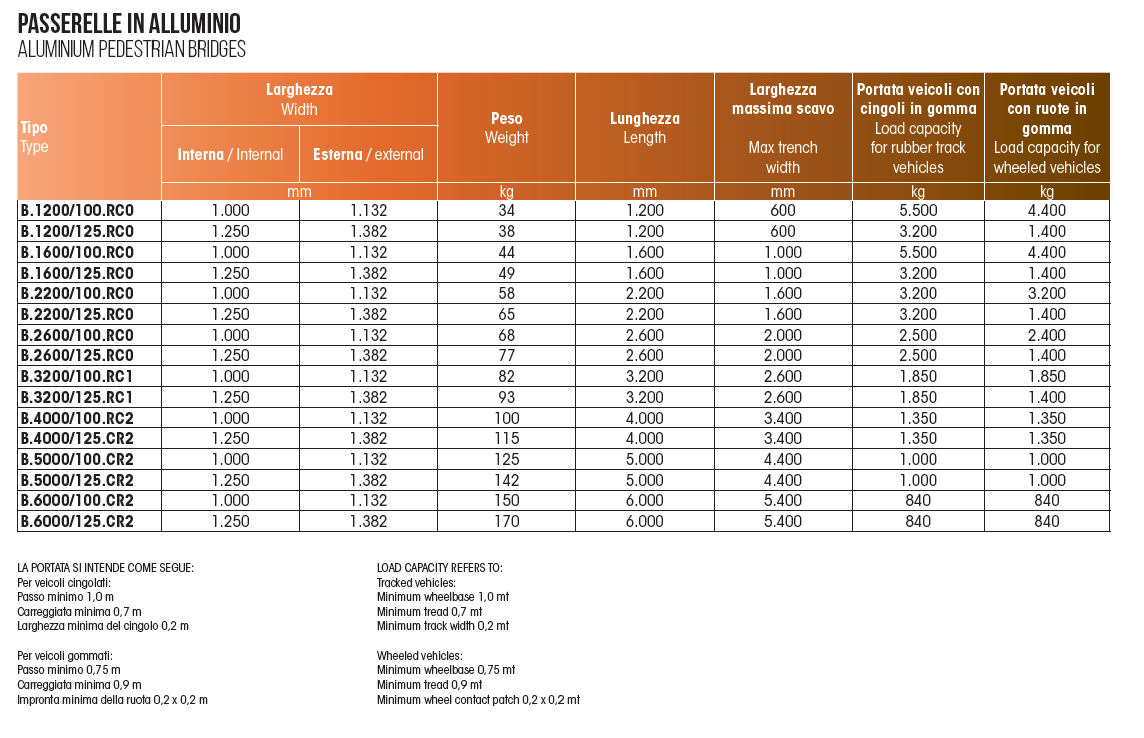

LOAD CAPACITY UP TO 5500 KG
LENGHT FROM 1200 MM TO 6000 MM
WIDTH FROM 1132 MM TO 1382 MM
